• Bearing model
• Model
  GERMAN BEARING FAG 7311-B-XL-TVP
• internal diameter-(mm)
• d
  55
• Outer diameter -(mm)
• D
  120
• Bearing thickness-(mm)
• B
  29
• Dynamic load-(kN)
• cr
  85
• Static load-(kN)
• cor
  60
• Fatigue load limit-(kN)
• Fatigue load limit
  2.55
• Reference speed-(r/min)
• Reference speed
  7000
• Limit speed-(r/min)
• Limit speed
  7000

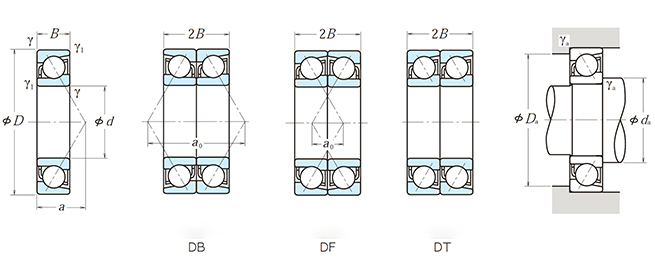

GERMAN BEARING FAG 7311-B-XL-TVP  Angular contact ball bearing: machine tool spindle, food machinery, indexing head, repair welding machine, low-noise cooling tower, electromechanical equipment, coating equipment, machine tool slot plate, arc welding machine.
