• Bearing model
• Model

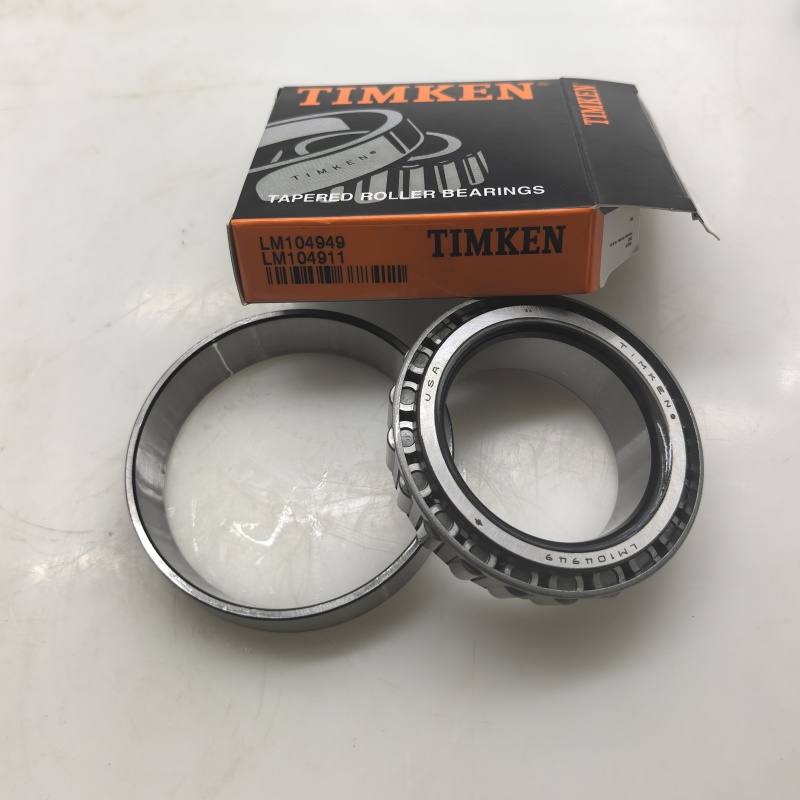

  TIMKEN BEARING LM104949/104911

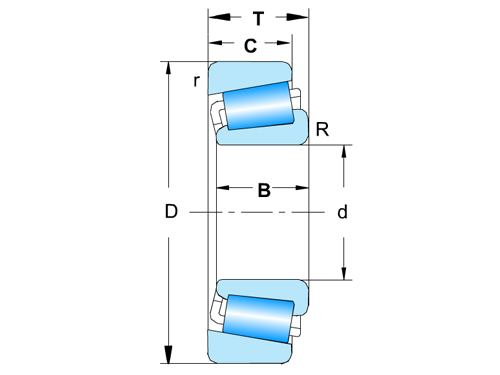

• internal diameter-(mm)
• d
  50.8
• Outer diameter -(mm)
• D
  82.55
• Bearing thickness-(mm)
• B
  72.1
• Dynamic load-(kN)
• cr
  72.1
• Static load-(kN)
• cor
  100
• Fatigue load limit-(kN)
• Fatigue load limit
  11
• Reference speed-(r/min)
• Reference speed
  6000
• Limit speed-(r/min)
• Limit speed
  8500

TIMKEN BEARING LM104949/104911 INCH Tapered roller bearings are usually of the separated type, that is, the conical inner race assembly composed of the inner race with roller and cage assembly can be installed separately from the conical outer race (outer race). Tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries。
