• Bearing model
• Model
  ASAHI SUCF205 Pillow block bearings
• internal diameter-(mm)
• d
  25
• Outer diameter -(mm)
• D
  34.1
• Bearing thickness-(mm)
• B
  97
• Dynamic load-(kN)
• cr
  40
• Static load-(kN)
• cor
  50
• Reference speed-(r/min)
• Reference speed
  4500
• Limit speed-(r/min)
• Limit speed
  5000

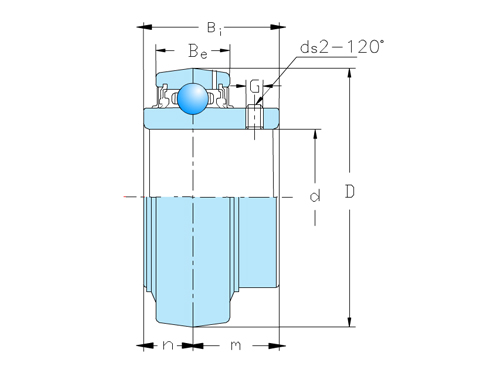

ASAHI SUCF205 Pillow block bearings is actually a variant of the deep groove ball bearing. Its feature is that the outer diameter surface of its outer ring is spherical, which can be matched into the corresponding concave spherical surface of the bearing seat to play the role of centering. The outer spherical bearing is mainly used to bear the combined radial and axial load, which is mainly radial load. Generally, it is not suitable to bear the axial load alone.
