• Bearing model
• Model
  ASAHI BRAND UCF210
• internal diameter-(mm)
• d
  14
• Outer diameter -(mm)
• D
  50
• Bearing thickness-(mm)
• B
  39.5
• Dynamic load-(kN)
• cr
  35.1
• Static load-(kN)
• cor
  23.3
• Fatigue load limit-(kN)
• Fatigue load limit
  1.06
• Reference speed-(r/min)
• Reference speed
  3000
• Limit speed-(r/min)
• Limit speed
  3500

Features

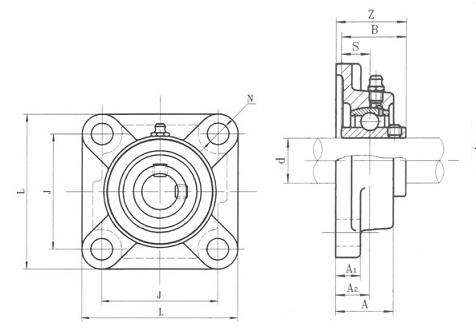

●The shape of the bearing housing is square and it is designed to be attached such as to the side wall of the machine by 4 bolts, also the structure around the bearing is simple and easy to install, so it is most widely used in the flange type.

Usage

●For transmission devices and general machinery.

Specification

●SPQ(piece):1
●Oil-lubricating Unit Square Flange Type　
●Lock Screw Type
●Working Temperature Range: -15 to 100°C

Materials

●Bearing: High carbon chromium steel bearing　
●Bearing Housing: Cast Iron
