• Bearing model
• Model
  FAG 3320MC3Angular Contact Ball Bearing
• internal diameter-(mm)
• d
  100
• Outer diameter -(mm)
• D
  215
• Bearing thickness-(mm)
• B
  82.6
• Dynamic load-(kN)
• cr
  236
• Static load-(kN)
• cor
  320
• Fatigue load limit-(kN)
• Fatigue load limit
  13.7
• Reference speed-(r/min)
• Reference speed
  3000
• Limit speed-(r/min)
• Limit speed
  3000

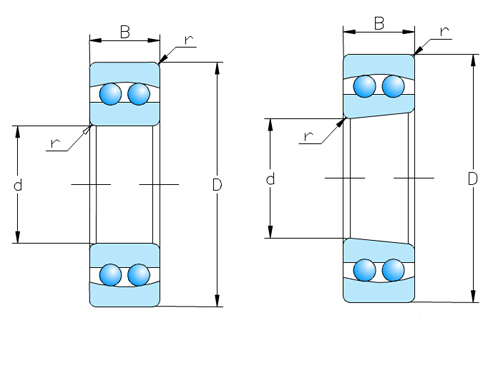

Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
