• Bearing model
• Model
  Pillow block ball bearing units ASAHI UCP 209
• internal diameter-(mm)
• d
  45
• Outer diameter -(mm)
• D
  54
• Bearing thickness-(mm)
• B
  190
• Dynamic load-(kN)
• cr
  34.1
• Static load-(kN)
• cor
  21.3
• Fatigue load limit-(kN)
• Fatigue load limit
  14
• Reference speed-(r/min)
• Reference speed
  3000
• Limit speed-(r/min)
• Limit speed
  3400

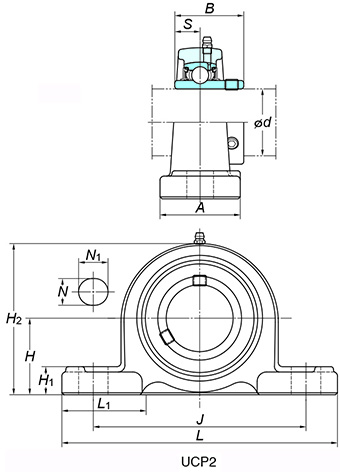

ASAHI UCP 209 Pillow block ball bearing unit with extended inner ring and set screw locking, cast iron, Japanese standards

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

Strong

Designed for a constant and alternating rotation

Ready to mount

Lubricated and sealed bearing

Quick locking onto the shaft

Cost-effective
