• Bearing model
• Model
  ASAHI UCP211 Ball bearing units
• internal diameter-(mm)
• d
  55
• Outer diameter -(mm)
• D
  219
• Bearing thickness-(mm)
• B
  60
• Dynamic load-(kN)
• cr
  43.4
• Static load-(kN)
• cor
  29.4
• Fatigue load limit-(kN)
• Fatigue load limit
  14.4
• Reference speed-(r/min)
• Reference speed
  2900
• Limit speed-(r/min)
• Limit speed
  3300

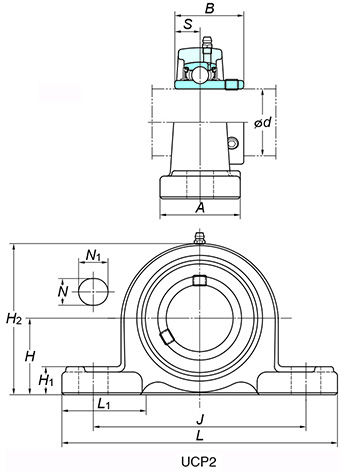

ASAHI UCP211 Ball bearing units

The ASAHI  series are dimensionally interchangeable with Japanese brands such as FAG / FYH and NTN.

The new radial insert ball bearing and housing units FAG Black Series from Schaeffler give easy mounting, smooth running and high reliability and thus allow particularly economical bearing arrangements.

The dimensions of the FAG housings, made from flake graphite cast iron and with a primer paint coating, conform to JIS B 1559 (Japanese Industrial Standard Dimensions).

These single piece cast housings can support moderate to high radial and axial loads. The radial insert ball bearings have basic protection against corrosion due to the Durotect BS coating.

The bearing units are particularly suitable for applications with moderate to high loads.
