• Bearing model
• Model
  ASAHI Bearing units SUCFB204
• internal diameter-(mm)
• d
  25.5
• Outer diameter -(mm)
• D
  106
• Bearing thickness-(mm)
• B
  76
• Dynamic load-(kN)
• cr
  6.6
• Static load-(kN)
• cor
  12.8
• Fatigue load limit-(kN)
• Fatigue load limit
  13.4

TP-SUCFB204 20mm Thermoplastic Flange Bearing Unit -

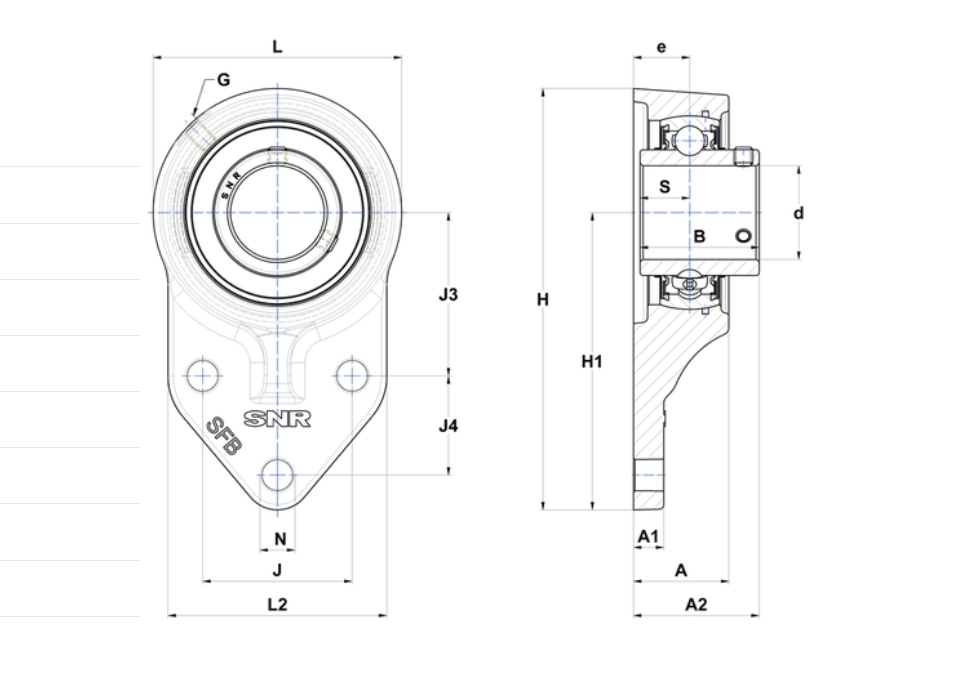

Full dimension details can be found by clicking on the Technical Information tab

Thermoplastic housed bearings are designed for use in the food and beverage processing and chemical industries. Our range of thermoplastic housed bearings have mounting holes reinforced with stainless steel sleeves and are supplied with stainless steel bearing inserts and plastic end caps. These bearings are ideally suited for use in the following conditions:

• Frequent washdowns
• Exposure to harsh chemicals
• Exposure to high humidity
• Operating Temperatures of -35° C to 102° C
