• Bearing model
• Model
  3210-BD-XL-2Z FAG Angular Contact Ball Bearing

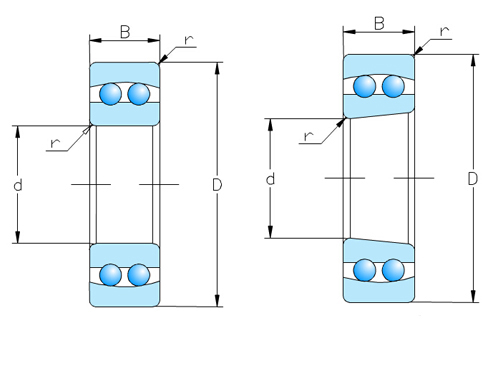

• internal diameter-(mm)
• d
  50
• Outer diameter -(mm)
• D
  90
• Bearing thickness-(mm)
• B
  30.2
• Dynamic load-(kN)
• cr
  51
• Static load-(kN)
• cor
  39
• Fatigue load limit-(kN)
• Fatigue load limit
  1.66
• Reference speed-(r/min)
• Reference speed
  7000
• Limit speed-(r/min)
• Limit speed
  7000

The 3210A-2Z SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.
