• Bearing model
• Model
  NTN 6206 ZZ *CM Deep Groove Ball Bearing

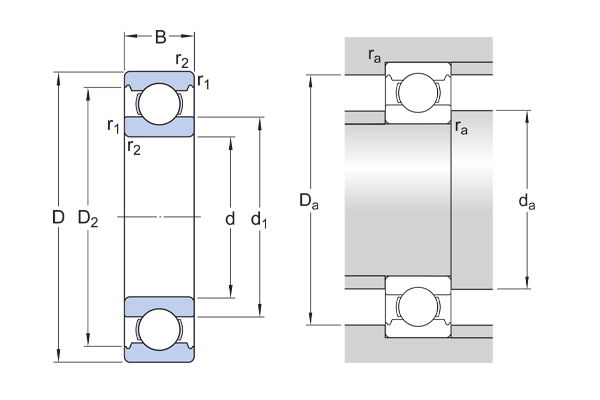

• internal diameter-(mm)
• d
  30
• Outer diameter -(mm)
• D
  62
• Bearing thickness-(mm)
• B
  16
• Dynamic load-(kN)
• cr
  20.5
• Static load-(kN)
• cor
  11.3
• Fatigue load limit-(kN)
• Fatigue load limit
  0.51
• Reference speed-(r/min)
• Reference speed
  120000
• Limit speed-(r/min)
• Limit speed
  140000

NTN 6206 ZZ *CM Deep Groove Ball Bearing Deep groove ball bearing, radial contact, pressed steel cage, shields on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.
