• Bearing model
• Model

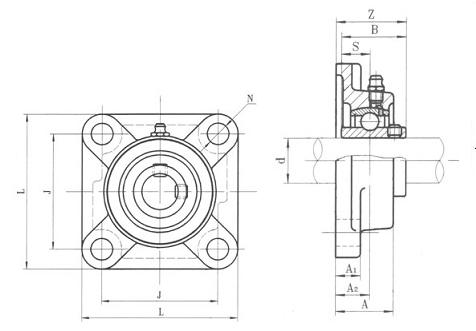

  UCF207-J7 FAG 4 Hole Flange Bearing Unit
• internal diameter-(mm)
• d
  35
• Outer diameter -(mm)
• D
  117
• Bearing thickness-(mm)
• B
  44.4
• Dynamic load-(kN)
• cr
  15300
• Static load-(kN)
• cor
  27500

UCF207-FAGB 35mm 4 Bolt Flange Bearing - Black Series

The FAG black series are dimensionally interchangeable with Japanese brands such as Asahi / FYH and NTN.

The new radial insert ball bearing and housing units FAG Black Series from Schaeffler give easy mounting, smooth running and high reliability and thus allow particularly economical bearing arrangements.

The dimensions of the FAG housings, made from flake graphite cast iron and with a primer paint coating, conform to JIS B 1559 (Japanese Industrial Standard Dimensions).

These single piece cast housings can support moderate to high radial and axial loads. The radial insert ball bearings have basic protection against corrosion due to the Durotect BS coating.

The bearing units are particularly suitable for applications with moderate to high loads.
