• Bearing model
• Model
  22218 EK SKF Spherical Roller Bearing

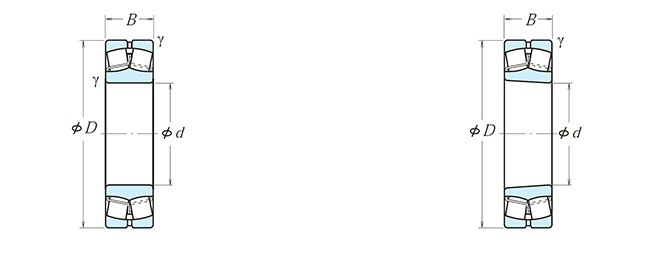

• internal diameter-(mm)
• d
  90
• Outer diameter -(mm)
• D
  160
• Bearing thickness-(mm)
• B
  40
• Dynamic load-(kN)
• cr
  331
• Static load-(kN)
• cor
  375
• Fatigue load limit-(kN)
• Fatigue load limit
  39
• Reference speed-(r/min)
• Reference speed
  3800
• Limit speed-(r/min)
• Limit speed
  5300

Brand SKF Item Number 22218EK SKF EAN 7316570641493 Category Spherical Roller Bearing Weight and Dimensions Inner (d) MM 90 Outer (D) MM 160 Width (B) MM 40 Inner (d) Inch 3.5433 Outer (D) Inch 6.2992 Width (B) Inch 1.5748 Weight (kg) 3.1 Product Properties Bore K - 1:12 Tapered Bore (Standard for Most Types) Lubrication Enhancement W33 - Lubrication Groove and 3 Holes Seal No Seal Cage Type S - Steel or Standard Cage Radial Internal Play Cn Normal Internal Play Precision Standard Precision Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C Vibrating Screen Execution Non Vibrating Screen Execution Suffix description E d ≤65mm, Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Centered On The Inner Ring. When d >65 mm Same As <65mm But Guide Ring Centered On The Cages K Tapered Bore, Taper 1:12 Product description The 22218EK SKF is a spherical roller bearing with an open design. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.
