• Bearing model
• Model
  SKF NU 217 ECML/C3 Cylindrical Roller Bearing
• internal diameter-(mm)
• d
  85
• Outer diameter -(mm)
• D
  150
• Bearing thickness-(mm)
• B
  28
• Dynamic load-(kN)
• cr
  190
• Static load-(kN)
• cor
  200
• Fatigue load limit-(kN)
• Fatigue load limit
  25
• Reference speed-(r/min)
• Reference speed
  4800
• Limit speed-(r/min)
• Limit speed
  5300

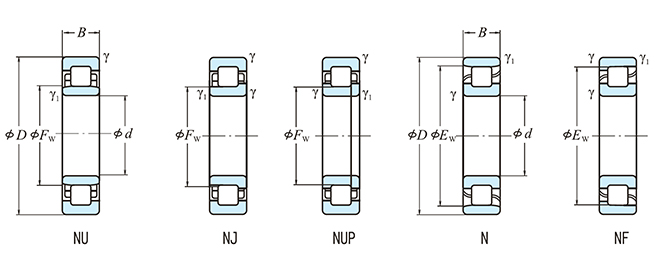

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
