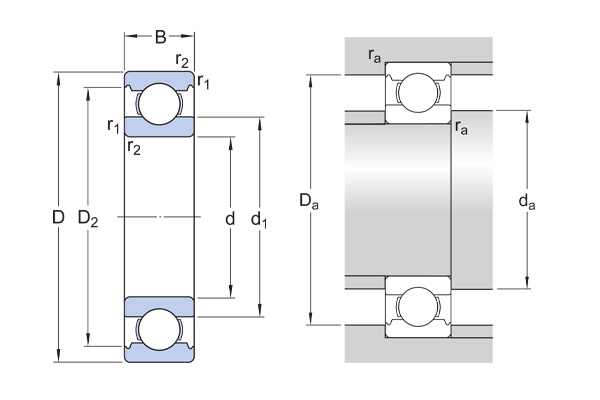

• Bearing model
• Model
  SKF 6001-2RSH SKF deep groove ball bearing
• internal diameter-(mm)
• d
  12
• Outer diameter -(mm)
• D
  28
• Bearing thickness-(mm)
• B
  8
• Dynamic load-(kN)
• cr
  5.4
• Static load-(kN)
• cor
  2.36
• Fatigue load limit-(kN)
• Fatigue load limit
  0.1
• Reference speed-(r/min)
• Reference speed
  60000
• Limit speed-(r/min)
• Limit speed
  170000

The SKF 6001-2RSH C3 is a high-performance single-row deep groove ball bearing designed for versatile industrial and mechanical applications. Engineered with precision by the world's leading bearing manufacturer, this compact 12mm x 28mm x 8mm bearing offers exceptional reliability and performance.

Key Features:

Single-row deep groove ball bearing design

Double rubber seals (2RSH) for superior contamination protection

C3 internal clearance for optimal thermal expansion

Pre-lubricated with high-quality grease

Manufactured to SKF's rigorous quality standards

Performance Specifications:

Inside Diameter: 12mm

Outside Diameter: 28mm

Width: 8mm

Maximum Grease RPM: 28,000

Maximum Oil RPM: 34,000

Typical Applications:

Electric motors

Automotive components

Agricultural machinery

Conveyor systems

Pumps and compressors

The sealed design prevents dust, dirt, and moisture from entering the bearing, extending its operational life and maintaining optimal performance. Its C3 clearance allows for enhanced thermal expansion, making it ideal for high-speed and high-temperature environments.

Recommended for applications requiring a robust, low-maintenance bearing with excellent speed and precision capabilities.
