• Bearing model
• Model

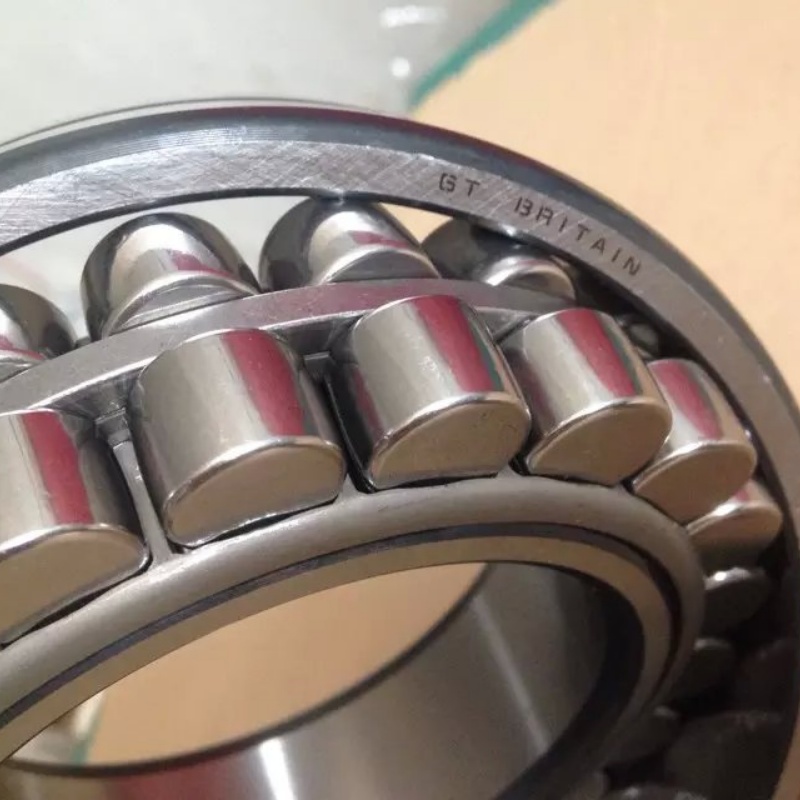

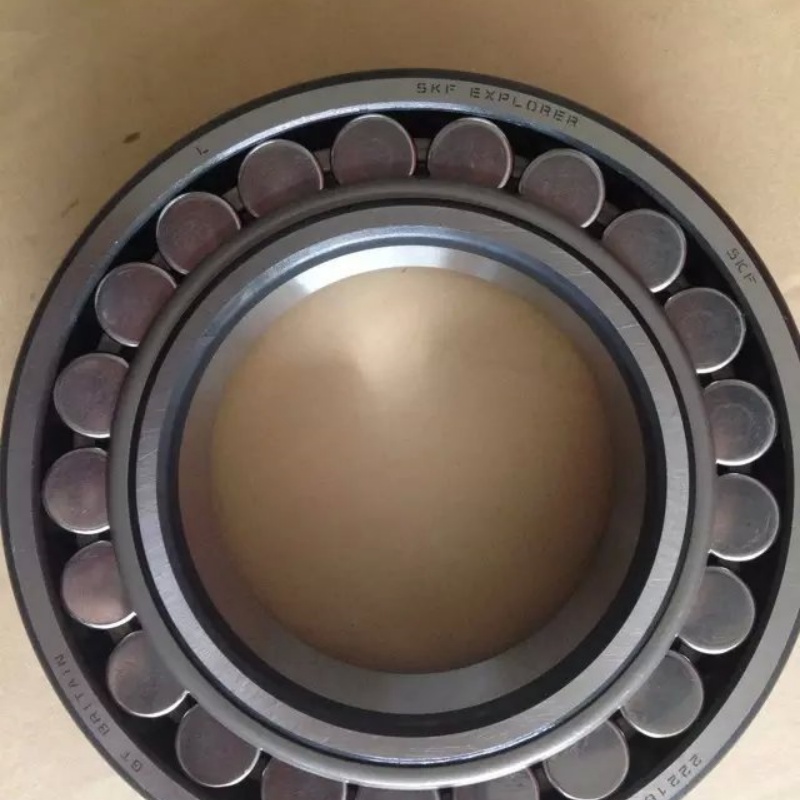

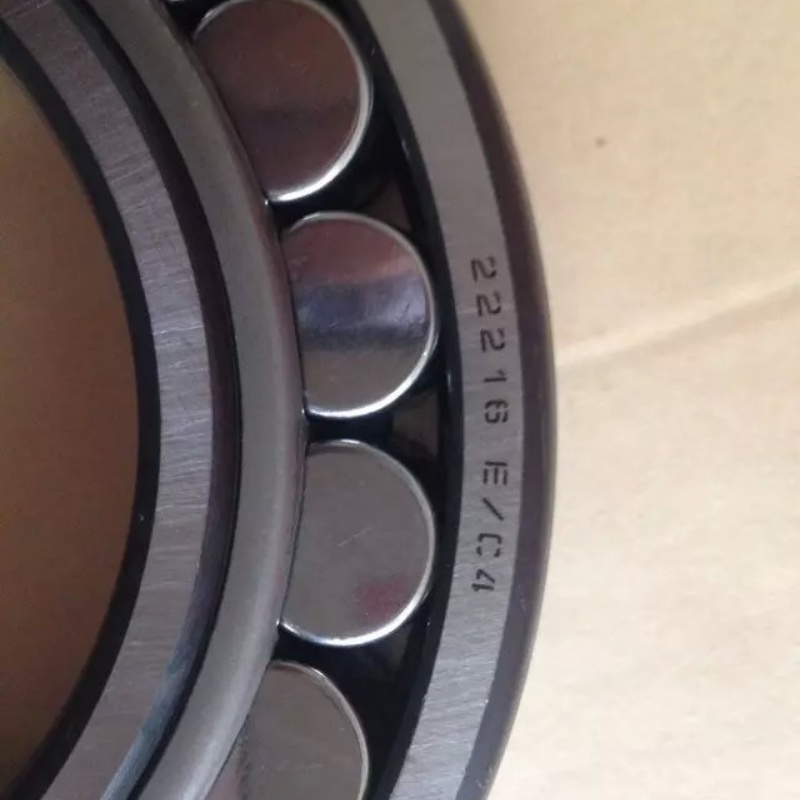

  22216EK/C3 SKF Spherical Roller Bearing

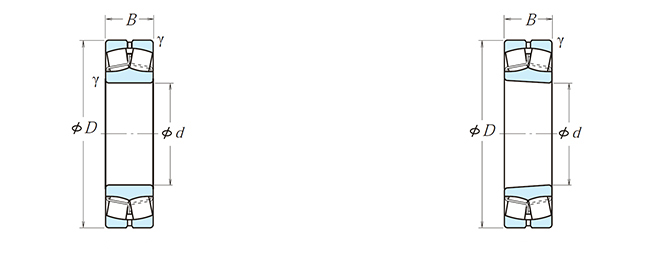

• internal diameter-(mm)
• d
  80
• Outer diameter -(mm)
• D
  140
• Bearing thickness-(mm)
• B
  33
• Dynamic load-(kN)
• cr
  239
• Static load-(kN)
• cor
  260
• Fatigue load limit-(kN)
• Fatigue load limit
  270
• Reference speed-(r/min)
• Reference speed
  6000
• Limit speed-(r/min)
• Limit speed
  4300

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
