• Bearing model
• Model

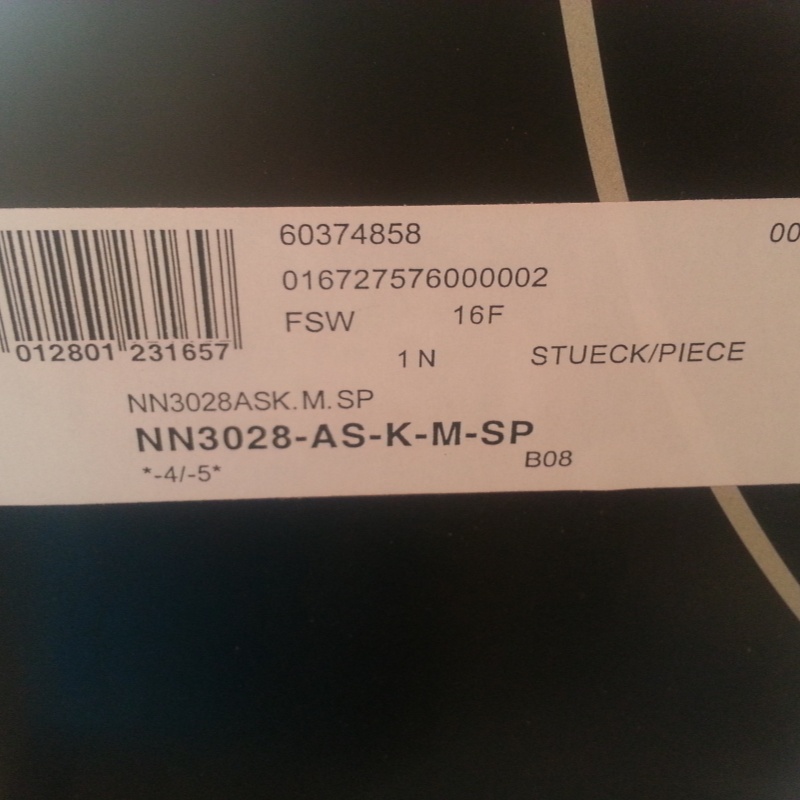

  FAG NN3028-AS-M-SP FAG
• internal diameter-(mm)
• d
  140
• Outer diameter -(mm)
• D
  210
• Bearing thickness-(mm)
• B
  53
• Dynamic load-(kN)
• cr
  300000
• Static load-(kN)
• cor
  520000
• Fatigue load limit-(kN)
• Fatigue load limit
  6.34
• Reference speed-(r/min)
• Reference speed
  3900
• Limit speed-(r/min)
• Limit speed
  4600

FAG Cylindrical Roller Bearings are designed to handle high radial loads and moderate axial loads in both directions. They are ideal for applications requiring high speed and precision, such as electric motors, gearboxes, and industrial machinery. These bearings feature rolling elements that are cylindrical rather than spherical, allowing for a larger contact surface area, which provides better load distribution and increased load-carrying capacity.

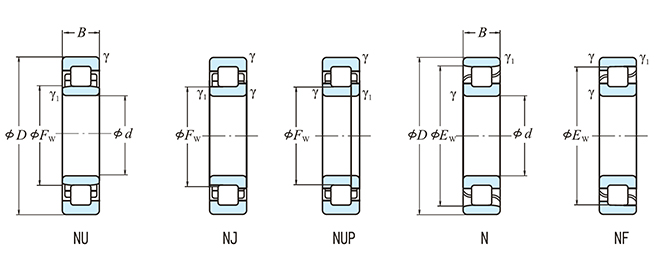

They are available in various designs, including single-row, double-row, and multi-row configurations, depending on the load requirements and available space. These bearings are also available with different cage designs, such as brass or polyamide, to optimize performance and reduce friction.

FAG, a brand of Schaeffler Group, is renowned for its engineering expertise and quality. The company uses advanced materials and manufacturing processes to ensure that their cylindrical roller bearings offer long service life, reliability, and low maintenance, making them suitable for demanding industrial applications.
