• Bearing model
• Model

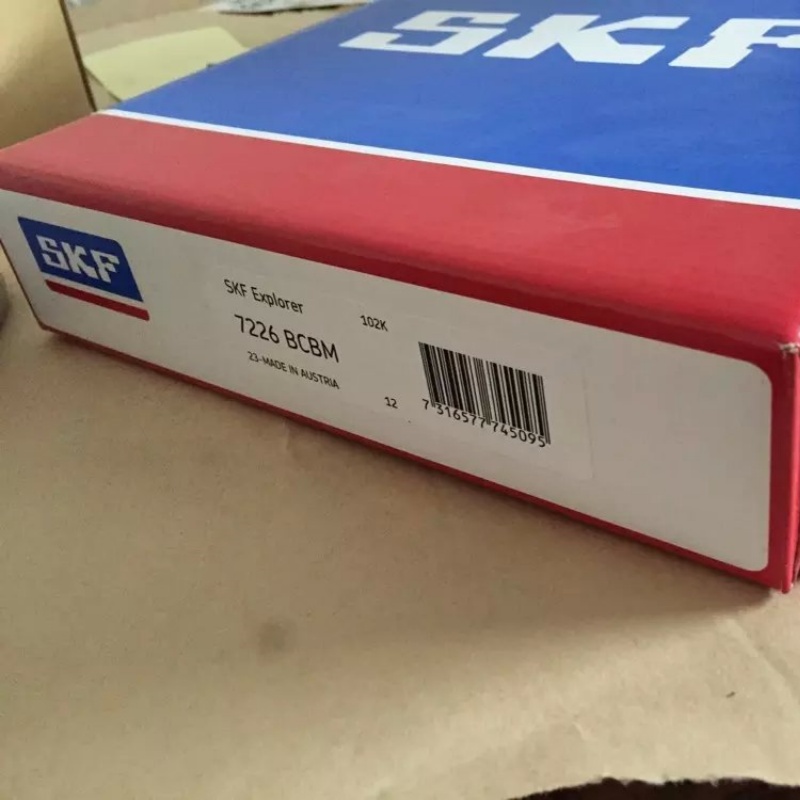

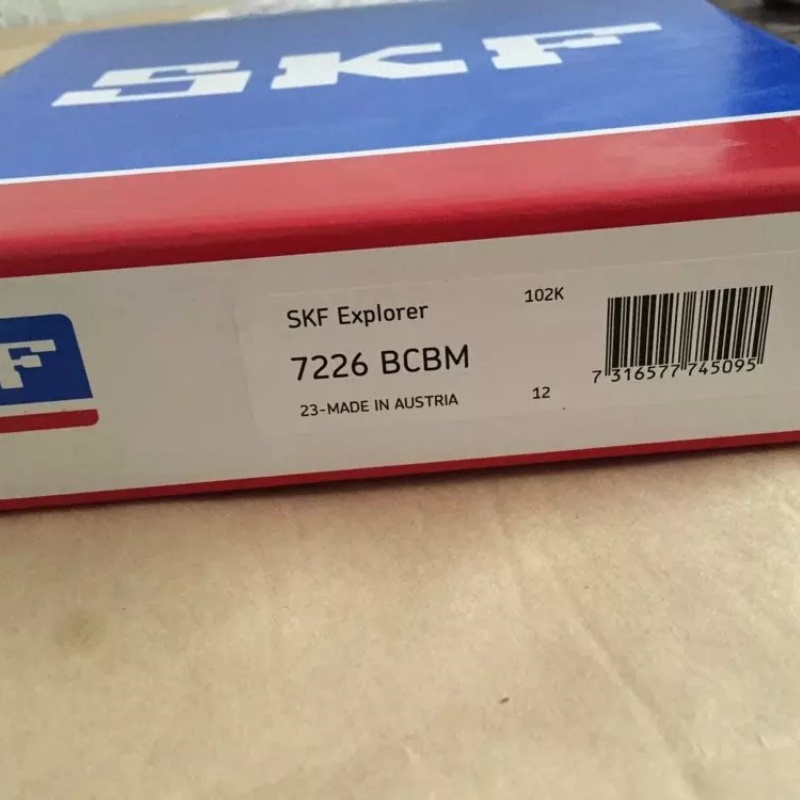

  SKF 7226 BCBM Angular contact ball bearing
• internal diameter-(mm)
• d
  130
• Outer diameter -(mm)
• D
  230
• Bearing thickness-(mm)
• B
  40
• Dynamic load-(kN)
• cr
  186
• Static load-(kN)
• cor
  193
• Fatigue load limit-(kN)
• Fatigue load limit
  6.1
• Reference speed-(r/min)
• Reference speed
  3400
• Limit speed-(r/min)
• Limit speed
  3800

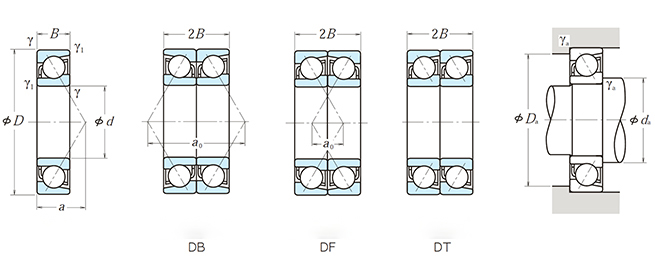

SKF 7226 BCBM  Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

SKF, are the world leader and largest manufacturer worldwide in premium quality bearings. They manufacture bearings in plants across the globe, using the finest steel, to a world class standard that offers reliability and longer service life.
