• Bearing model
• Model

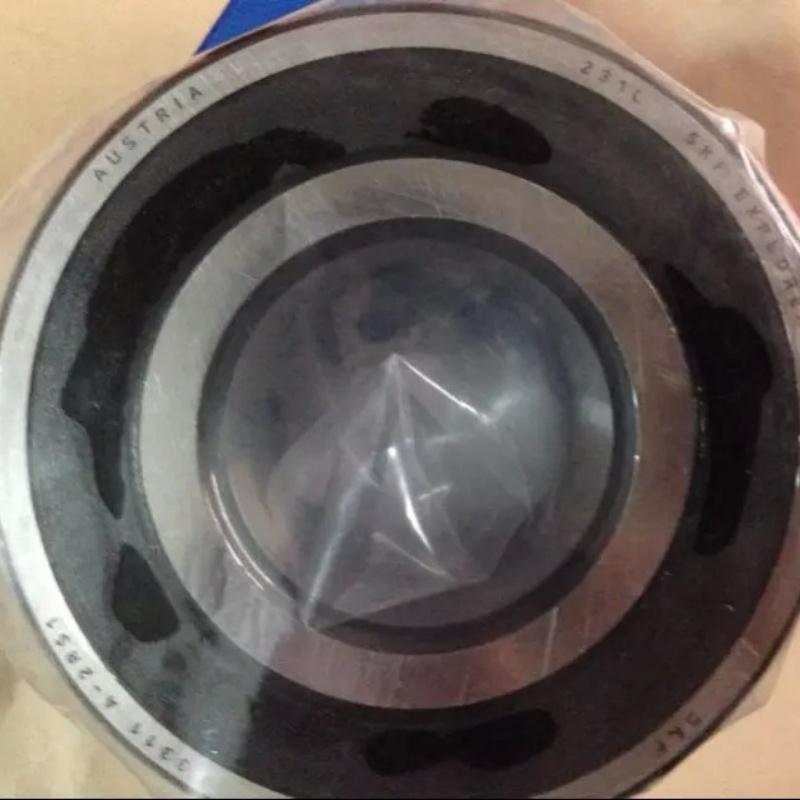

  SKF 3311 A/C3 Double Row Angular Contact Bearing
• internal diameter-(mm)
• d
  55
• Outer diameter -(mm)
• D
  120
• Bearing thickness-(mm)
• B
  49.2
• Dynamic load-(kN)
• cr
  112
• Static load-(kN)
• cor
  81.5
• Fatigue load limit-(kN)
• Fatigue load limit
  8.12
• Reference speed-(r/min)
• Reference speed
  6000
• Limit speed-(r/min)
• Limit speed
  5300

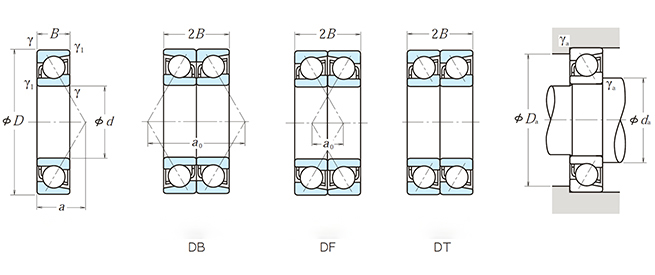

The 3311A SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.
