• Bearing model
• Model

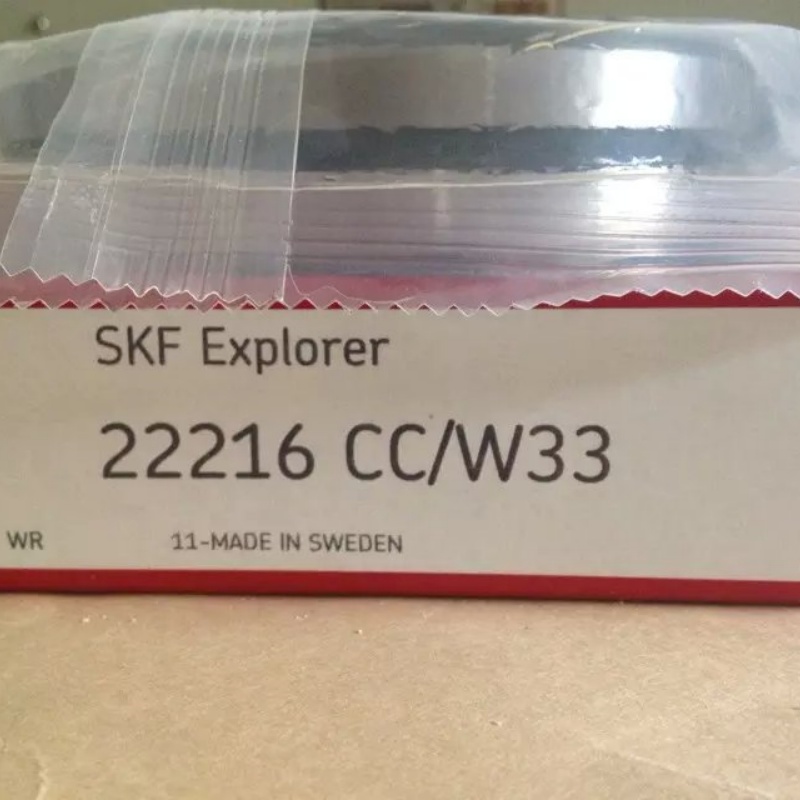

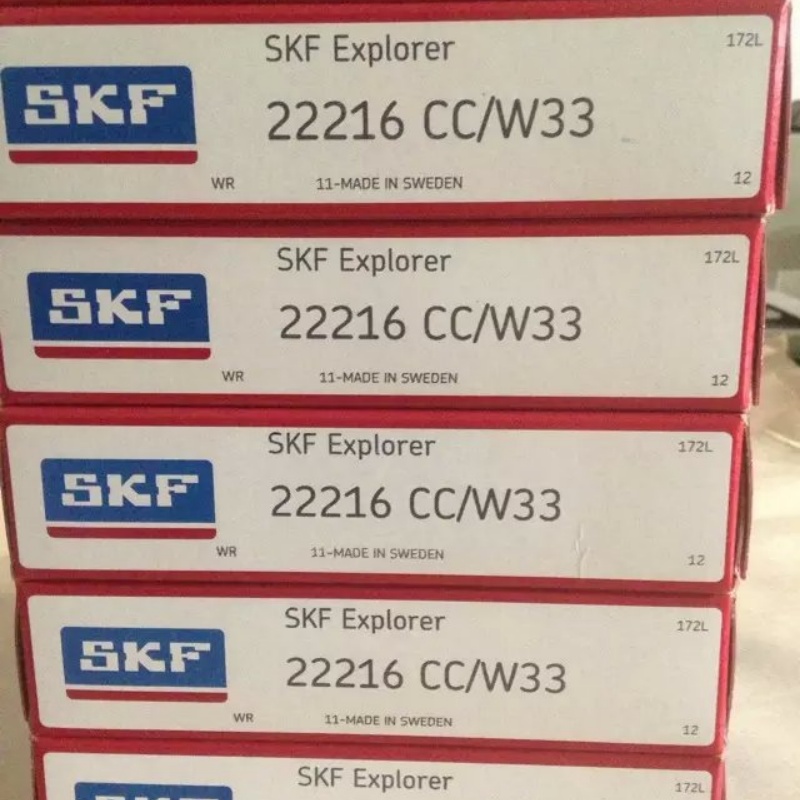

  SKF 22216 CC/C3W33 BEARING

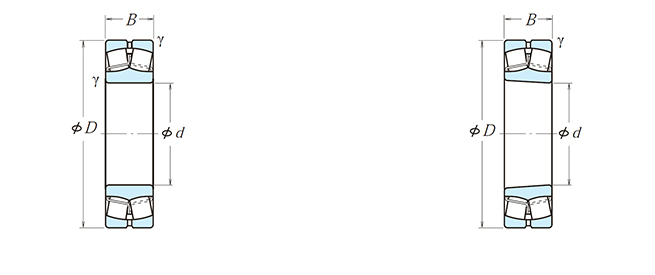

• internal diameter-(mm)
• d
  80
• Outer diameter -(mm)
• D
  140
• Bearing thickness-(mm)
• B
  33
• Dynamic load-(kN)
• cr
  243
• Static load-(kN)
• cor
  270
• Fatigue load limit-(kN)
• Fatigue load limit
  7.52
• Reference speed-(r/min)
• Reference speed
  4300
• Limit speed-(r/min)
• Limit speed
  6000

Spherical roller bearing with two rows of rollers

pivoting inner ring, misalignments and shaft deflections can be compensated

suitable für very high radial and relatively high axial loads in both directions

medium series with average weight

cage material: sheet steel. Resistant to fatigue and wear; provide good protection against impact loads and acceleration forces

seal: open (without seal); for higher speeds than with sealed spherical roller bearings and easy relubrication

good fixed bearing property, but can also be used as a floating bearing, each in both directions

manufacturers of bearings, such as FAG, KOYO, NSK, SKF, SNR, etc. assign different suffixes for their characteristics, for better orientation take note of the comparison table of bearings (see further information)
