• Bearing model
• Model
  FAG (Schaeffler) 6207-2Z-L038-C3 Deep Groove Ball Bearing
• internal diameter-(mm)
• d
  35
• Outer diameter -(mm)
• D
  72
• Bearing thickness-(mm)
• B
  17
• Dynamic load-(kN)
• cr
  27.5
• Static load-(kN)
• cor
  15.3
• Fatigue load limit-(kN)
• Fatigue load limit
  1.03
• Reference speed-(r/min)
• Reference speed
  12700
• Limit speed-(r/min)
• Limit speed
  11300

The 6207-2Z FAG is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6207-2Z FAG is suitable for high speeds and can operate with low noise.

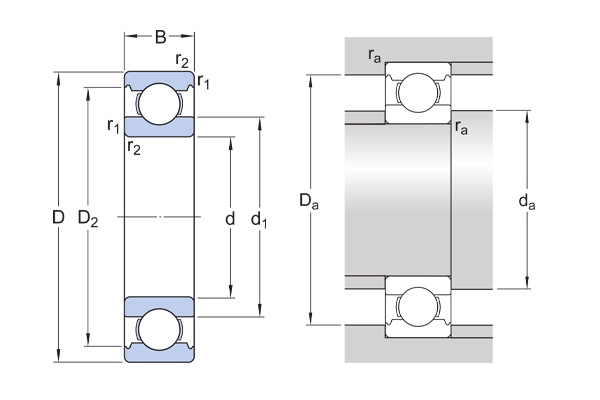

The dimensions of the 6207-2Z FAG are: Bore (or inner diameter) 35mm, Outer diameter 72mm and Width (or thickness) 17mm.

6200 serie
The 6207-2Z FAG is part of the popular 6200 serie which contain extra light ball bearings and are perfect for limited space applications.The 6200 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

Seal
The 2Z suffix indicates that the bearing has a steel seal on both sides. The bearings are filled with a high-quality grease and are lubricated for life.

About FAG
FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.
