• Bearing model
• Model
  SKF NU 212 ECM/C4 Cylindrical roller bearings
• internal diameter-(mm)
• d
  60
• Outer diameter -(mm)
• D
  110
• Bearing thickness-(mm)
• B
  22
• Dynamic load-(kN)
• cr
  108
• Static load-(kN)
• cor
  102
• Fatigue load limit-(kN)
• Fatigue load limit
  13.4
• Reference speed-(r/min)
• Reference speed
  6700
• Limit speed-(r/min)
• Limit speed
  7500

Cylindrical Roller Design

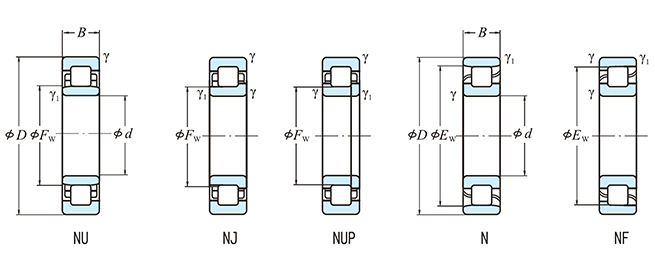

The NU212ECP/C3 SKF bearing features a cylindrical roller design, optimising load distribution and facilitating high radial load capacity. NU-type bearings have two flanges on the outer ring and no flanges on the inner ring, meaning the inner ring is separable in both directions. This allows the bearing to accommodate axial displacement of the shaft relative to the housing in both directions.

Versatile Applications

The NU212ECP/C3 SKF bearing is suitable for a wide range of applications, including industrial machinery, power generation, and more. Whether you're in manufacturing, automotive, or any other industry requiring reliable rotational motion, the SKF NU212ECP/C3 is engineered to meet your requirements.

High-Speed Capability

The NU212ECP/C3 SKF bearing is designed to handle high-speed operations while maintaining low noise and vibration levels. This ensures smooth and efficient rotation in dynamic environments without compromising stability. This makes it ideal for applications that demand rapid rotation.

Optimised Load Distribution and Carrying

The design of the NU212 ECP/C3 SKF bearing ensures even load distribution and carries heavy radial loads while maintaining a low cross-sectional height and low friction. This helps to enhance performance and ultimately extend the bearing’s lifespan.
