Outer spherical bearing with diamond seat

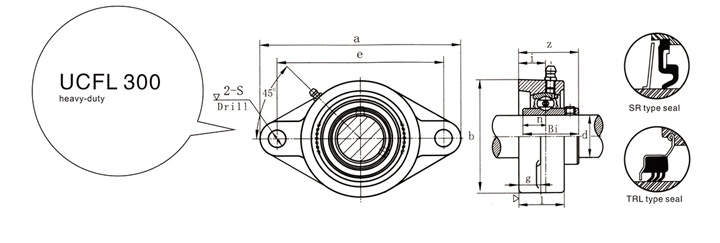

Bearing pedestal FL and UC can form UCFL200 and UCFL300 series. Similarly, it can also work with UK, UEL (NA), UB, SB and other components. The UCFL series combination is light in structure and convenient in installation. It is suitable for installation in the transmission part with small area. It is also suitable for installation in the vertical plane such as the mechanical side as well as the UCF series. Because the center distance of the two mounting bolt holes of the diamond bearing block is the same as the center distance of the two diagonal bolt holes of the square bearing block, they are interchangeable with each other. The SBLF200 series of spherical bearing with seat is a bearing with diamond seat designed for the purpose of lightweight. There are 7 models in this series from SBLF201 to SBLF207. Bearing pedestal LF can also be assembled with UB (SB) and UE (SA). These products are mainly used in packaging machinery, fruit sorter and other equipment.
