• Bearing model
• Model
  ASAHI UCP206
• internal diameter-(mm)
• d
  30
• Outer diameter -(mm)
• D
  42.9
• Bearing thickness-(mm)
• B
  165
• Dynamic load-(kN)
• cr
  19.5
• Static load-(kN)
• cor
  11.3
• Fatigue load limit-(kN)
• Fatigue load limit
  0.514
• Reference speed-(r/min)
• Reference speed
  4500
• Limit speed-(r/min)
• Limit speed
  5300

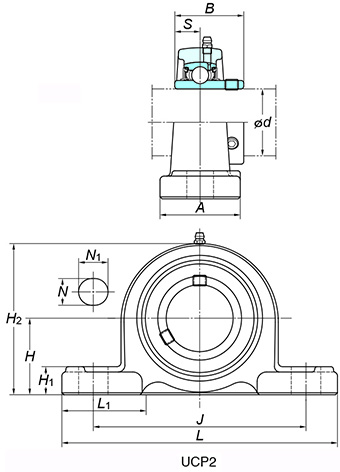

The UCP206 ASAHI Cast Iron Pillow Block is the ideal solution for your bearing and housing assembly needs. This sturdy Pillow Block comes equipped with a fully sealed Bearing Insert already fitted within the housing, ensuring optimal performance and durability. Crafted from high-quality cast iron, this Pillow Block boasts exceptional strength and reliability, making it suitable for a wide range of applications. This two-bolt unit has hexagon socket set screws and a 30mm shaft diameter.
