• Bearing model
• Model
  FAG 3319M Double Row Angular Contact BALL BEARING
• internal diameter-(mm)
• d
  95
• Outer diameter -(mm)
• D
  200
• Bearing thickness-(mm)
• B
  77.8
• Fatigue load limit-(kN)
• Fatigue load limit
  12.1
• Reference speed-(r/min)
• Reference speed
  3200
• Limit speed-(r/min)
• Limit speed
  4450

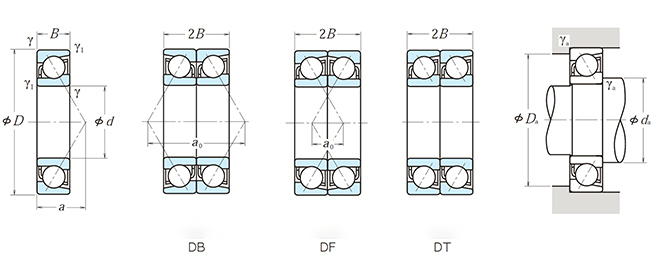

The 3319-M-C3 FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.
