• Bearing model
• Model
  FAG 24156E1-30-C3

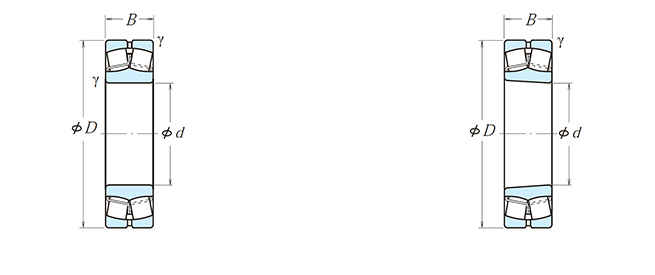

• internal diameter-(mm)
• d
  280
• Outer diameter -(mm)
• D
  460
• Bearing thickness-(mm)
• B
  180
• Dynamic load-(kN)
• cr
  3183
• Static load-(kN)
• cor
  5100
• Fatigue load limit-(kN)
• Fatigue load limit
  415
• Reference speed-(r/min)
• Reference speed
  630
• Limit speed-(r/min)
• Limit speed
  900

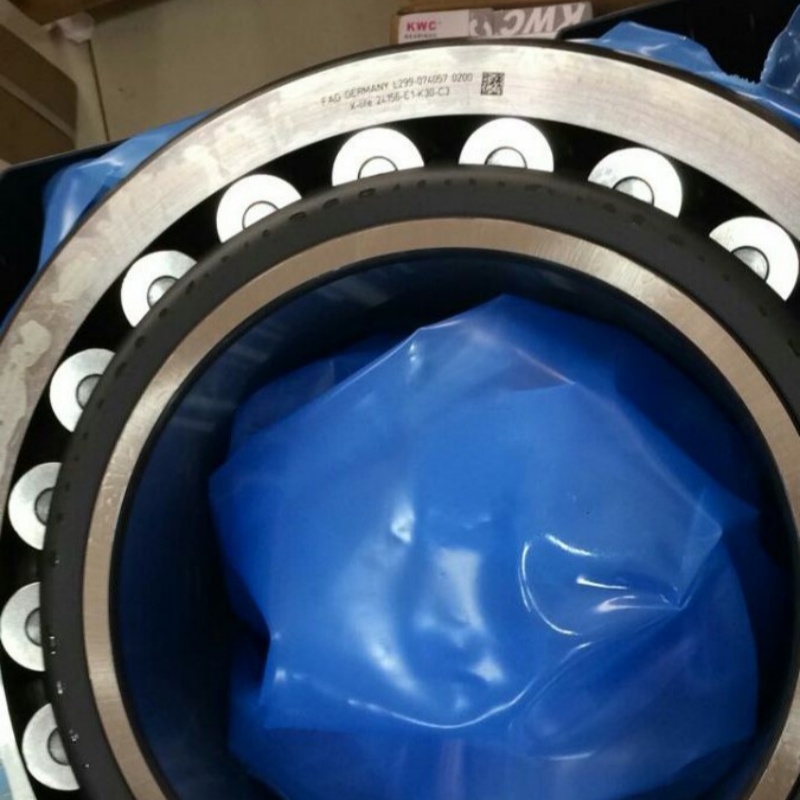

The 24156-E1-K30-C3 FAG is a spherical roller bearing. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

The 24156-E1-K30-C3 FAG is an X-life type bearing. X-life bearings provide better performance than normal spherical roller bearings due to a special internal construction. Contact surfaces, steel grade and rolling bodies are of a higher quality. X-life bearings combine a higher load capacity with a longer service life. The bearings generate less heat and allow for higher speeds. Finally, X-life bearings allow for longer maintenance intervals compared to normal spherical roller bearings.
