• Bearing model
• Model
  ASAHI Pillow Block Unit UCP208
• internal diameter-(mm)
• d
  40
• Outer diameter -(mm)
• D
  137
• Bearing thickness-(mm)
• B
  49.2
• Dynamic load-(kN)
• cr
  17.9
• Static load-(kN)
• cor
  29.3
• Reference speed-(r/min)
• Reference speed
  19800
• Limit speed-(r/min)
• Limit speed
  34500

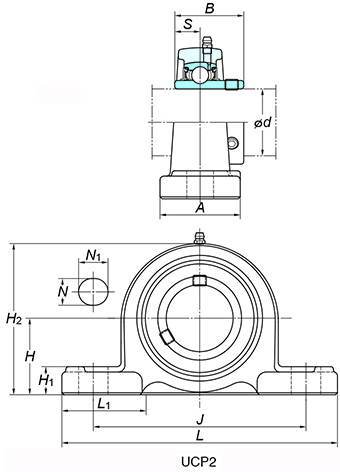

The UCP208 Asahi is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.
