• Bearing model
• Model
  SKF E2.627-2Z/C3
• internal diameter-(mm)
• d
  7
• Outer diameter -(mm)
• D
  22
• Bearing thickness-(mm)
• B
  7
• Dynamic load-(kN)
• cr
  3.45
• Static load-(kN)
• cor
  1.37
• Fatigue load limit-(kN)
• Fatigue load limit
  0.0457
• Reference speed-(r/min)
• Reference speed
  70000
• Limit speed-(r/min)
• Limit speed
  36000

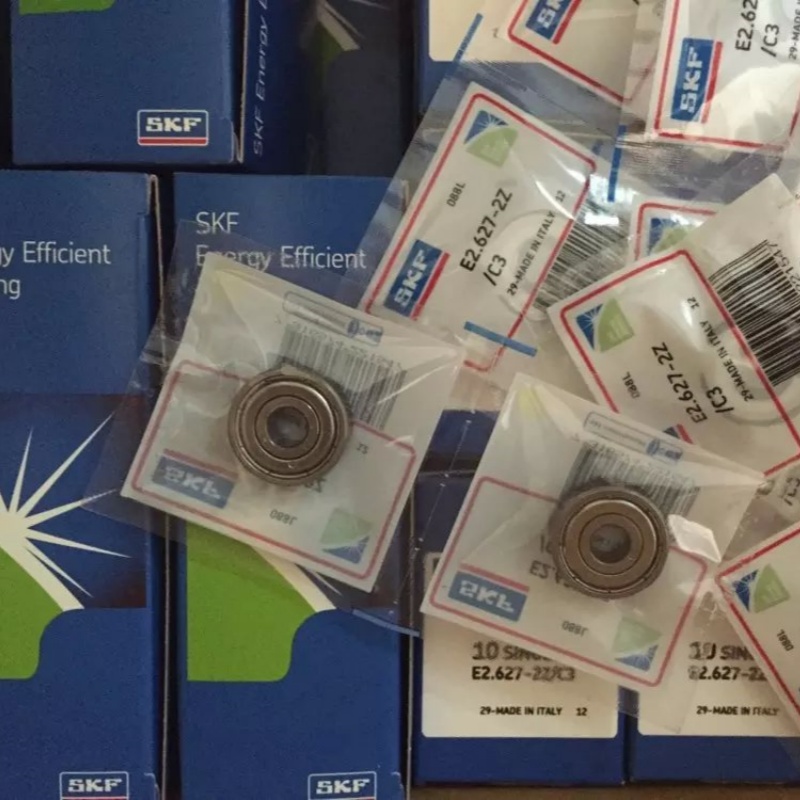

The Deep Groove Ball Bearing, known as 627-ZZ-SKF SKF, has an inner diameter of 7 mm, an outer diameter of 22 mm and a thickness of 7 mm.

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
