  SKF Shaft alignment tool TKSA 71

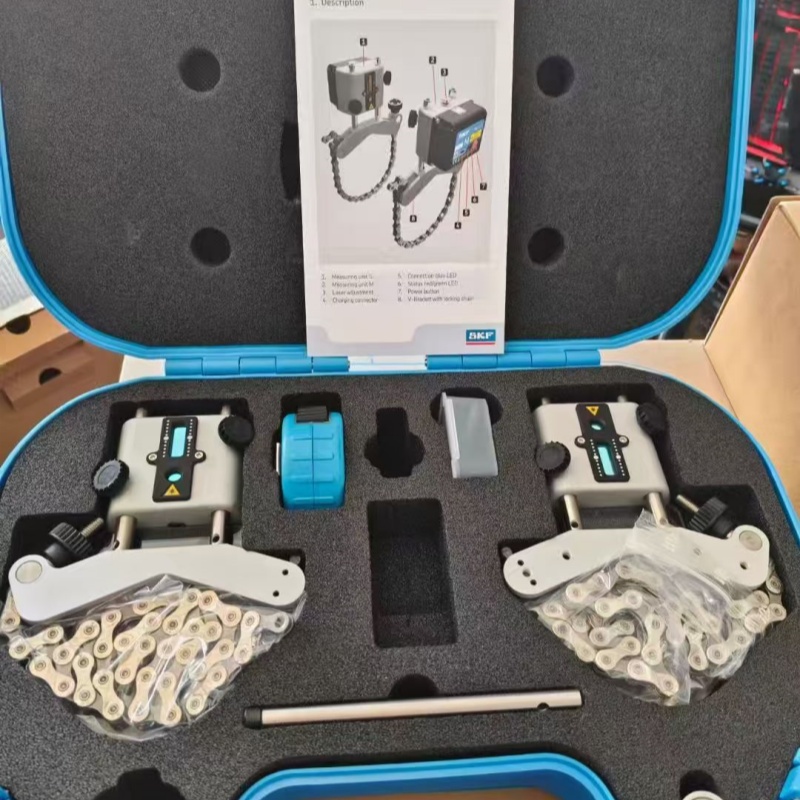

SKF TKSA 71PRO Professional Wireless Laser Shaft Alignment Kit with Accessories

Designed for professional alignment in harsh industrial environments, the TKSA 71 complements SKF’s offering with a high-end shaft alignment tool. The instrument is very versatile with ultra-compact measuring units for use in extremely narrow spaces. Its dedicated software applications enable different types of alignments, including horizontal and vertical shafts, spacer shafts and machine trains. Superior alignment performance and long-term industrial durability are achieved with an innovative instrument design that offers high measurement accuracy and excellent protection against dust and water in harsh environments

Applications Include:

Shaft alignment - Easy and intuitive alignments of horizontal shafts with additional features including automatic measurement, minimal 40° total rotation, 9-12-3 guidance and alignment customisation with target values.

Vertical shaft alignment - Easy and intuitive alignment of vertical shaft machines with shimming support for different bolt configurations.

Machine train shaft alignment - Enables operator to align three connected machines, giving a complete overview of machine train alignment and allowing the operator to select stationary feet.

Soft foot - Assists technician in verifying that machine is standing evenly on all four feet. The app supports the operator identifying and correcting a soft foot.

Spacer shaft alignment - Accommodates special requirements of spacer shafts and facilitates the alignment process.

Values - Allows the shaft alignment tool to be used as digital dial gauges; operators can record absolute, zeroed and halved readings to perform customised alignments with manual calculations

TKSA 71 advantages:

Easy-to-use - Intuitive software applications, guided alignment processes and explanatory videos

Wide range of applications - Comprehensive accessories and dedicated software applications

Superior alignment performance - Up to 10 m measurement distance, disturbance compensation, measurement flexibility, only 40° total rotation, automatic measurement and customised alignments with target values

Protection against harsh environments - Completely sealed measuring units (IP67) to withstand dust and water

Ultra-compact measuring units - Use in extremely narrow spaces
