• Bearing model
• Model
  Deep groove ball bearing 624-ZZ-SKF

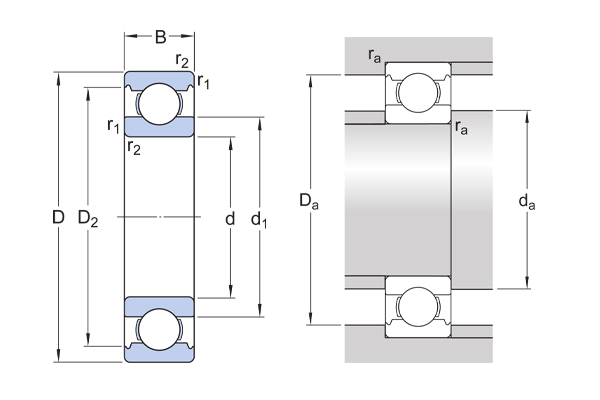

• internal diameter-(mm)
• d
  4
• Outer diameter -(mm)
• D
  13
• Bearing thickness-(mm)
• B
  5
• Dynamic load-(kN)
• cr
  0.936
• Static load-(kN)
• cor
  0.29
• Fatigue load limit-(kN)
• Fatigue load limit
  0.003
• Reference speed-(r/min)
• Reference speed
  53000
• Limit speed-(r/min)
• Limit speed
  53000

BRAND: SKF ID: 624 ZZ LHT23 MADE IN: Japan DESCRIPTION Item Number624-2Z/LHT23 SKF EAN7316577732477 Category Deep Groove Ball Bearings Single Row Weight and Dimensions Inner (d) MM4 Outer (D) MM13 Width (B) MM5 Inner (d) Inch0.1575 Outer (D) Inch0.5118 Width (B) Inch0.1969 Weight (kg)0.003 Product Properties Bore C - Cylindrical Bore Seal ZZ/2Z - Steel Seal on Two Sides Cage Type S - Steel or Standard Cage External Modification No External Modification Radial Internal Play Cn Normal Internal Play Precision Standard Precision Lubrication L - -50°C/+140°C Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C Special Treatment No Special Treatment Suffix description 2ZShield Of Pressed Sheet Steel On Both Sides Of The Bearing LHT23Lithium Grease, Wide Range, 26 cSt @ 40°C, Range -50 ~ 140°C. A Two-Figure Number Following LHT Identifies The Actual Grease Package Includes: One (1) SKF Bearing 624 ZZ LHT23
