• Bearing model
• Model

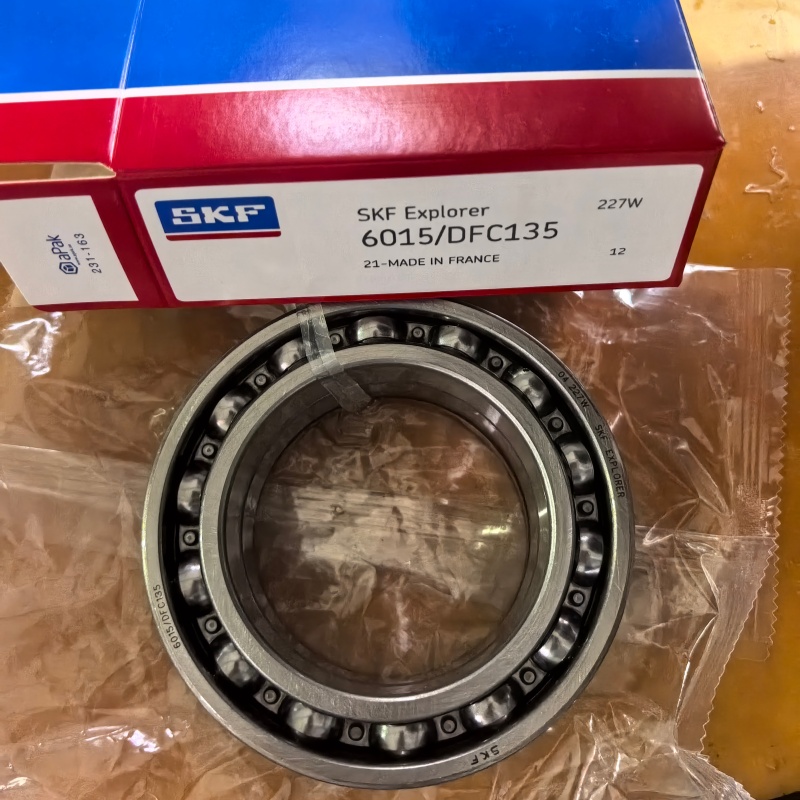

  6015/DFC135 SKF Deep Groove Ball Bearings Single Row

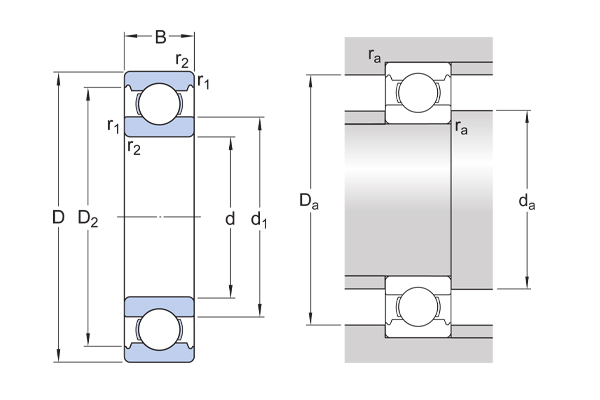

• internal diameter-(mm)
• d
  75
• Outer diameter -(mm)
• D
  115
• Bearing thickness-(mm)
• B
  40
• Dynamic load-(kN)
• cr
  63.7
• Static load-(kN)
• cor
  67
• Fatigue load limit-(kN)
• Fatigue load limit
  2.34
• Reference speed-(r/min)
• Reference speed
  12000
• Limit speed-(r/min)
• Limit speed
  7500

Double row deep groove ball bearings correspond, in their design and operation, to a pair of single row deep groove ball bearings. They are robust in operation, requiring little maintenance, can operate at high speeds and accommodate radial and axial loads in both directions. They are slightly wider than single row bearings of the same bore and outside diameter but have a considerably higher load carrying capacity.

• Versatile and robust design
• High-speed capability
• Accommodate high axial and radial loads in both directions
• Require little maintenance
