• Bearing model
• Model
  skf NUP2210-E-M6-C3
• internal diameter-(mm)
• d
  70
• Outer diameter -(mm)
• D
  125
• Bearing thickness-(mm)
• B
  24
• Dynamic load-(kN)
• cr
  90
• Static load-(kN)
• cor
  88
• Fatigue load limit-(kN)
• Fatigue load limit
  11.4
• Reference speed-(r/min)
• Reference speed
  8500
• Limit speed-(r/min)
• Limit speed
  1400

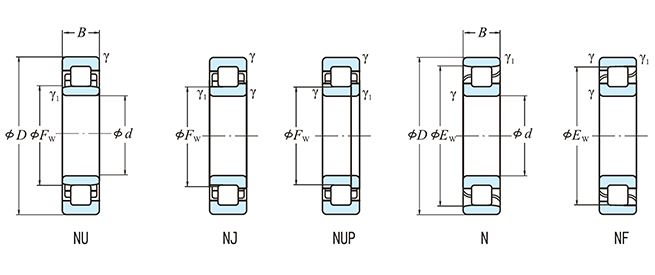

Design Features of NUP 2210 ECP Bearing

NUP 2210 ECP Bearing features a single row of cylindrical rollers that offer high radial load capacity and low friction for efficient performance. NUP 2210 ECP outer dia is 90 mm. Its bore dia is 50 mm. The inclusion of an inner ring ensures precise alignment, providing stability and smooth rotation under varying load conditions, making it suitable for applications requiring robust and reliable support.

What Benefits Can NUP 2210 ECP Bearing Provide?

• High Load Capacity: The design supports high radial loads, making it ideal for heavy-duty applications.
• Low Friction: Reduced friction enhances efficiency and extends the lifespan of the bearing.
• Compact Design: The single row configuration allows for a more compact bearing, saving space in machinery.
• Improved Stability: The inner ring ensures precise alignment, providing smooth and stable operation.
• Durability: The bearing is built for long-lasting performance under demanding conditions.
• Versatility: Suitable for a wide range of applications, from industrial machinery to automotive systems.

What Can NUP 2210 ECP Bearing Be Used for?

• Industrial Machinery: Used in heavy-duty machines like pumps, compressors, and gearboxes to handle high radial loads.
• Automotive Industry: Found in engines, transmissions, and wheel hubs, providing reliable support under varying load conditions.
• Single Row Equipment: Used in machinery such as cranes and excavators, which require bearings that can handle high loads and rough conditions.
• Mining Equipment: Essential for equipment like conveyors and crushers, where high load-bearing capacity is needed.
• Electric Motors: Provides stable support for the rotor, reducing friction and improving efficiency.
• Agricultural Equipment: Used in machines like tractors and harvesters to ensure smooth operation under tough conditions.
