• Bearing model
• Model
  FAG 62305-A-2RSR-C3 BALL BEARING

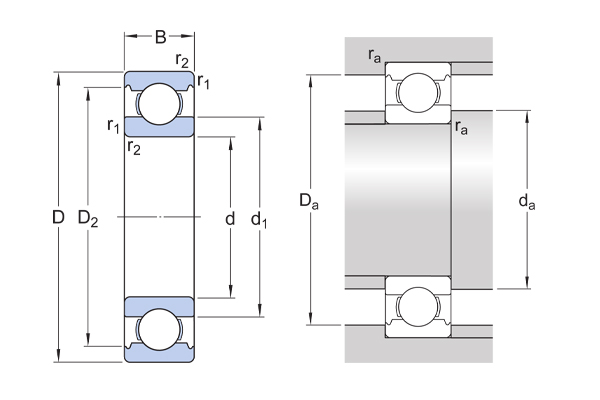

• internal diameter-(mm)
• d
  25
• Outer diameter -(mm)
• D
  62
• Bearing thickness-(mm)
• B
  24
• Dynamic load-(kN)
• cr
  11500
• Static load-(kN)
• cor
  23800
• Fatigue load limit-(kN)
• Fatigue load limit
  0.75
• Reference speed-(r/min)
• Reference speed
  7300
• Limit speed-(r/min)
• Limit speed
  7500

62305-2RS1-C3

Single row deep groove ball bearings are versatile, self-retaining
bearings with solid outer rings, inner rings and ball and cage
assemblies. They are of a simple design, robust in operation and easy to
maintain. They are available in open and sealed designs. Due to the
raceway geometry and the use of balls, deep groove ball bearings can
support axial forces in both directions as well as radial forces. Deep
groove ball bearings of Generation C were specially developed with a
focus on low noise levels and low frictional torque. They are
particularly suitable, for example, for use in electrical machinery,
ventilators, washing machines and power tools.
