• Bearing model
• Model

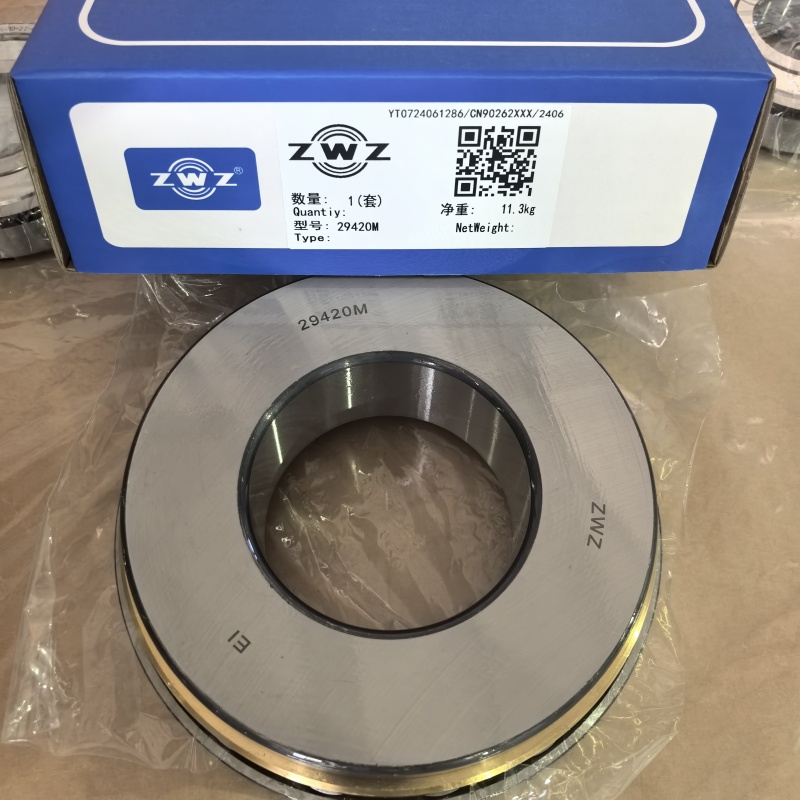

  ZWZ BEARING 29420M
• internal diameter-(mm)
• d
  100
• Outer diameter -(mm)
• D
  210
• Bearing thickness-(mm)
• B
  67
• Dynamic load-(kN)
• cr
  980
• Static load-(kN)
• cor
  2500
• Fatigue load limit-(kN)
• Fatigue load limit
  275
• Reference speed-(r/min)
• Reference speed
  1700
• Limit speed-(r/min)
• Limit speed
  3000

ZWZ BEARING 29420M  Thrust cylindrical roller bearings are often combined into high stiffness bearing configurations, which can bear heavy load and vibration load without difficulty. It is only applicable to the parts that bear one side of axial load and low speed, and only to the parts that bear one side of axial load and low speed, such as crane hook, vertical pump, vertical centrifuge, jack, such as crane hook, vertical pump, vertical centrifuge, jack, low speed reducer, etc. The shaft ring, race and rolling body of the bearing are separated, and the speed reducer, etc. The shaft ring, seat ring and rolling element of the bearing are separated and can be installed and removed separately
